X9 6KVA 10KVA Rack Tower Online UPS

Brand : Cassspower
Product origin : Shenzhen, China
Delivery time : 30 days
Supply capacity : 50K


Features:

• True double-conversion online UPS

• User-friendly and easy-shift LCD display

• Output power factor 0.9

• Active power factor correction in all phases

• 50Hz/60Hz frequency converter mode

• ECO mode operation for energy saving

• Hot-swappable battery design for 1-3K models only

• Emergency power off function (EPO)

• Generator compatible

• Active input power factor correction 0.99 for 6K and up models

• DSP technology applied for 6K and up models

• Programmable power management outlets

• Rack/Tower design

• N+X parallel redundancy available for 6K and up models

User-friendly and easy-shift LCD display

The front panel digital display can be easily shifted through LCD setting to suit the installation format, vertically stand or flat wall mount. The front panel digital display can be easily shifted through LCD

setting to suit the installation format, vertically stand or flat wall mount.

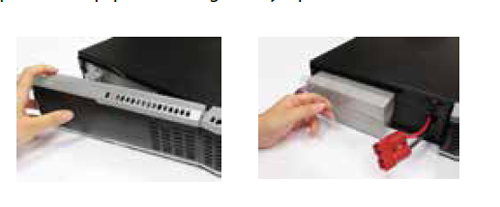

Hot-swappable battery design for 1-3K models only

This design ensures clean and uninterruptible power to protected equipment during battery replacement.

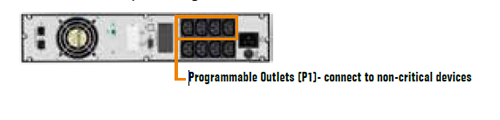

Programmable power management outlets

With programmable power management outlets, users can easily and independently control load segments. During power failure, this feature enables users to extend battery time to missioncritical

devices by shutting down the non-critical devices.



X9 Battery Pac:


capacity

6K

10K

type of battery

12 V / 7 Ah

12 V / 9 Ah

Quantity

20 pcs

20pcs

size(DxWxH)

580 x 438 x 133

580 x 438 x 133

net weight(kgs)

57

63

PHASE

Single phase with ground

CAPACITY

6000 VA / 5400 W

10000 VA / 9000 W

INPUT

Nominal Voltage

200/208/220/230/240 VAC

Voltage Range

110-300 VAC ± 3% at 50% load 176-300 VAC ± 3% at 100% load

Power Factor

0.99 @ 100% load

OUTPUT

Nominal Voltage

200/208/220/230/240 VAC

104 VAC x 2 / 208 VAC or 110 VAC x 2 / 220 VAC or 115 VAC x 2 / 230 VAC or 120 VAC x 2 / 240 VAC

200/208/220/230/240 VAC

104 VAC x 2 / 208 VAC or 110 VAC x 2 / 220 VAC or 115 VAC x 2 / 230 VAC or 120 VAC x 2 / 240 VAC

AC Voltage Regulation

± 1%

± 3%

± 1%

± 3%

Frequency Range(Synchronized Range)

46~54 Hz or 56~64 Hz

Frequency Range(Batt. Mode)

50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz

Current Crest Ratio

3:1 (max.)

Harmonic Distortion

2 % THD (Linear Load), 4 % THD (Non-linear Load)

3.5 % THD (Linear Load), 7 % THD (Non-linear Load)

2 % THD (Linear Load), 4 % THD (Non-linear Load)

3.5 % THD (Linear Load), 7 % THD (Non-linear Load)

Transfer Time

AC Mode to Battery Mode

Zero

Inverter to Bypass

Zero

Waveform (Batt. Mode)

Pure Sinewave

EFFICIENCY

AC Mode

91%

85%

91%

85%

ECO Mode

96%

87%

96%

87%

Battery Mode

88%

82%

88%

82%

BATTERY

Standard Model

Battery Type

12 V / 7 Ah

12 V / 9 Ah

Numbers

20 (18-20 pcs adjustable)*

20 (18-20 pcs adjustable)*

Typical Recharge Time

7 hours recover to 90% capacity

9 hours recover to 90% capacity

Charging Current (max.)

1.0 A

1.0 A

Float Charging Voltage

273 VDC (based on battery numbers at 20 pcs)

Long Run Model

Battery Type and Numbers

Depending on applications

Charging Current (max.)

4.0 A

4.0 A

Float Charging Voltage

273 VDC (based on battery numbers at 20 pcs)

INDICATORS

LCD Display

UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

When using internal batteries from 18-19, the unit will de-rate according to below formula: P=PRating x N/20

If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated one percent per 100m. * L means long-run model

Product specifications are subject to change without further notice
