54V 8A switching power supply

Brand : Cassspower
Product origin : Shenzhen, China
Delivery time : 30 days
Supply capacity : 50K

54V 8A switching power supply

Feature:

·Wide range input from 100~240Vac .

·105℃ output capacitor.

·Built-in EMI filter, low ripple .

·Protections: Short circuit / Over current / Over voltage/Over load, it is reliability and stability.

·High efficiency is ≥90% .

·Complete protection function with high precision constant output current, low noise as well.

·The most economical & useful power supply with low wattage,100% full load burn-in test.

·Soft startup power supply, effectively reduce the impact degree of AC input.

·2 years warranty.

P.S: Constant voltage power supply for industrial using;


Electrical Requirements

1.1

Input Requirements

Item

Project

Technical Specifications

Unit

1.1.1

Input Voltage

100—240

Vac

1.1.2

Input Voltage Range

≥0.98(115Vac)/

≥0.95(230Vac)

Vac

1.1.3

AC Input Voltage Frequency

90—264

Hz

1.1.4

Inrush Starting Current

≤40

A

1.1.5

Max Input Current

≤6.5

A

1.1.6

Efficiency

≥94

≥90

1.2

Output Requirements

Item

Project

Technical Specifications

Unit

1.2.1

Output Voltage

54

Vdc

1.2.2

Output Voltage Range

0~54V

Vdc

1.2.3

Load Output Current

8

A

1.2.4

Output minimum current

0

A

1.2.5

stabilized voltage precision

±10%

1.2.6

PFC Value

≥0.9

1.2.7

Ripple & Noise

≤270

mVp-p

1.2.8

ON/OFF overshoot amplitude

±5%

1.2.9

Dynamic

Response

Overshoot amplitude

±5%

±3%

1.2.10

Voltage Regulation

1

1.2.11

Load Regulation

0.5

1.2.12

Start Time

200

mS

1.2.13

Hold up Time

≥20

mS

1.3

Protection

Item

Project

Technical Specifications

Unit

1.3.1

UVP

75Max

Vac

1.3.2

UVP recovery point

85Max

Vac

1.3.3

Output Over Voltage

Protection

56— 58

Vdc

1.3.4

Output voltage48V limiting current

10

A

1.3.5

OTP

65-75

1.3.6

DC Output Short Circuit Protection

The Protection Such as Hiccup, and Can Rework after Remove the Fault.


Isolation &Safety Requirements

Item

Project

Technical Specifications/

Testing Condition

2.1

Electrical strength

Input &

Output

3000Vac/10mA/1min

Input&earth connection

1500Vac/10mA/1min

Output&earth connection

0.5KVac/5mA/1min

2.2

Insulation resistance

Input &

Output

≥100MΩ@500Vdc

Output&earth connection

≥10MΩ@500Vdc

Input&earth connection

≥10MΩ@500Vdc

2.3

Leak current

≦3.5mA

Input 264Vac/50Hz.

2.4

Safety Approval

The Power Supply Shall Compliance With The Following Certerio:IEC60065,IEC60950GB4943 Etc.


EMI/EMC Requirements

Item

Project

Technical Specifications/

Testing Condition

3.1

EMI

Conduction disturbance emission

EN55013,EN55014,EN55022,EN55024,

GB354,GB17625,CLASS B

Radiation disturbance emission

EN55013,EN55014,EN55022,EN55024

,GB354,GB17625,CLASS B

3.2

EMS

Electrostatic discharge immunity

Air Discharge:±8KV

Contact Discharge:±4KV

Criterion:A

Electric Fast Transient Burst Anti-interferen

LEVEL 2

CriterionA

Surge immunity

DM ±2KV,Criteria A;

CM ±4KV,criterion A

Voltage sag, short time interrupt and slowly varying immunity

Selected According To The Standard

*PS:Testing criterion is formulated according to the system requirements.


Environmental Requirements

Item

Project

Technical Specifications

Unit

4.1

Working TEMP.

0+60

4.2

Storage TEMP.

-20―+85

4.3

Working Humidity

095% (No Frost)

4.4

Storage Humidity

0 ~95% (No Frost)

4.5

Altitude

≤2000

m

4.6

Cooling mode

Cooling with built-in DC fan


Environmental Test & Reliability Requirements

Item

Project

Technical Specifications

5.1

High temperature working

+60 8hrs

5.2

Low Temperature working

+0 8hrs

5.3

High temperature storage

+85 24hrs

5.4

Low temperature storage

-20 24hrs

5.5

MTBF

≥100K hours @ 115V 100% load 40.

≥500K hours @ 115V 90% load 25.

5.6

E-Cap Life

≥50000h @ 115V/230V full load 25


Mechanical structure

Item

Project

Technical

Specifications

Unit

6.1

Dimension

217*87 *50(±0.5)

mm

6.2

Installation Dimension

6.3

Output connecting terminal

See Table 1

6.4

Package

Anti static bubble bag


Table 1 Connector Definition)

PSU-30V Connector Pin Assignments

PSU AC Inlet Connector Pin Assignments(The fence terminal: 3PIN 180°,Pin pitch:8.25mm black BHD)


Pin 1

L

Pin 2

NC

Pin 3

N


PSU-30V Connector Pin Assignments (The fence terminal 6PIN 180°,Pin pitch: 8.25mm black BHD)

Pin 1

54V+

Pin 2

Pin 3

54V-

Pin 4

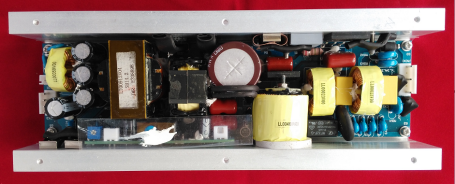

54V 8A switching power supply pictures:
