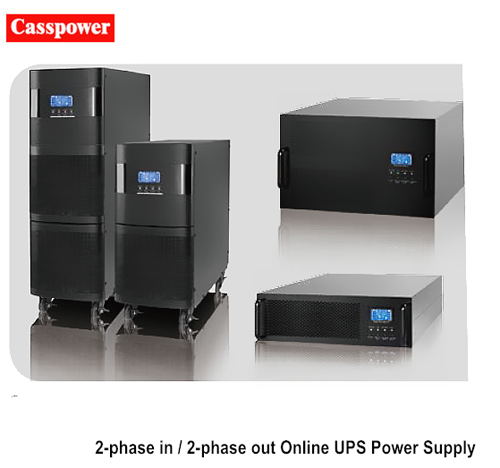

2phase in 2phase out Online UPS

Brand : Cassspower
Product origin : Shenzhen, China
Delivery time : 30 days
Supply capacity : 50K


Features:

• True double-conversion

• DSP technology guarantees high performance

• Output power factor 0.9

• Wide input voltage range (60-150 VAC)

• Active input power factor correction 0.99

• 50Hz/60Hz frequency converter mode

• ECO mode operation for energy saving (ECO)

• Emergency power off function (EPO)

• Generator compatible

• Charger capacity expansion to 8A for long-run models

• SNMP/USB/RS-232 communications

• 3-stage extendable charging design for optimized battery performance

• Maintenance bypass available

• Adjustable battery numbers

MODEL

W6KM(L)

P6KRM(L)

W10KM(L)

P10KRM(L)

PHASE

2-phase in / 2-phase out

CAPACITY

6000 VA / 5400 W

10000 VA / 9000 W

INPUT

Nominal Voltage

100/110/115/120/127 VAC (L-N)

Voltage Range

60-150 VAC (Ph-N) at 50% load ; 80-140 VAC (Ph-N) at 100% load

Frequency Range

46~54 Hz or 56~64 Hz

Phase Angle

0°/120°/180°/240°

Power Factor

0.99 @ 100% Load

OUTPUT

Output Voltage

100/110/115/120/127 VAC (L-N)

Phase Angle

0°/120°/180°/240°

AC Voltage Regulation (Batt. Mode)

± 1%

Frequency Range (Synchronized Range)

46~54 Hz or 56~64 Hz

Frequency Range (Batt. Mode)

50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz

Current Crest Ratio

3:1 (max.)

Harmonic Distortion

2 % THD (Linear Load), 5 % THD (Non-linear Load)

Transfer Time

AC Mode to Battery Mode

Zero

Inverter to Bypass

Zero

Inverter to ECO

< 10ms

Waveform (Batt. Mode)

Pure Sinewave

EFFICIENCY

AC Mode

90.5%

91%

ECO Mode

96%

96%

Battery Mode

87%

88%

BATTERY

Standard Model

Battery Type

12 V / 7 Ah

12 V / 9 Ah

Numbers

10 pcs x 2 strings

10 pcs x 2 strings

Typical Recharge Time

5 hours recover to 90% capacity

7 hours recover to 90% capacity

Charging Current (max.)

2.0 A

2.0 A

Float Charging Voltage

136.5 VDC

Long-run Model

Battery Type

Depending on applications

Numbers

Charging Current (max.)

8.0 A

Float Charging Voltage

136.5 VDC

INDICATORS

LCD Display

UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

ALARM

Battery Mode

Sounding every 4 seconds

Low Battery

Sounding every second

Overload

Sounding twice every second

PHYSICAL

Standard Model

Dimension,D x W x H(mm)

592 x 250 x 576

UPS unit:668 x 438 x 133(3U) Battery pack: 580 x 438 x 133(3U)

592 x 250 x 826

UPS unit:668 x 438 x 266(6U) Battery pack: 580 x 438 x 133(3U)

Net Weight (kgs)

83

UPS unit: 22 Battery pack: 63

100

UPS unit: 45 Battery pack: 63

Long-run Model

Dimension,D x W x H(mm)

592 x 250 x 576

668 x 438 x 133(3U)

592 x 250 x 576

668 x 438 x 133(3U)

Net Weight (kgs)

28

22

38

45

ENVIRONMENT

Operation Humidity

0-95 % RH @ 0- 40°C (Non-condensing)

Noise Level

Less than 60dBA @ 1 Meter

MANAGEMENT

Smart RS-232 / USB

Supports Windows2 2000/2003/XP/Vista/2008, Windows2 7/8, Linux, Unix, and MAC

Optional SNMP

Power management from SNMP manager and web browser

Derate Capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 100VAC.

If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated one percent per 100m.

Product specifications are subject to change without further notice
