150W 53V 2.83A POE power module

Brand : Cassspower
Product origin : Shenzhen, China
Delivery time : 30 days
Supply capacity : 50K


Feature:

·Anti-shock power with PFC

·Wide range input from 100~240Vac . ad, it is reliability and stability.

·High efficiency is ≥88% .

·Complete protection function with high precision constant output current, low noise as well.

·The most economical & useful power supply with low wattage,

·100% full load burn-in test.

·Soft startup power supply, effectively reduce the impact degree of AC input.

·2 years warranty.

P.S: Constant voltage power supply for industrial using;

Electrical Requirements:

1.1 Input Requirements
Item Project Technical Specifications Unit
1.1.1 Input Voltage 100~240 Vac
1.1.2 Input Voltage Range 90~264 Vac
1.1.3 AC Input Voltage Frequency 47—63 Hz
1.1.4 Inrush Starting Current 100 A
1.1.5 Max Input Current 2 A
1.1.6 Efficiency 88%
1.1.7 PFC Value ≥0.98(115Vac)/ ≥0.95(230Vac)
1.2 Output Requirements
Item Project Technical Specifications Unit
1.2.1 Output Voltage 53.5 Vdc
1.2.2 Output Voltage Range 50.8-56 Vdc
1.2.3 Load Output Current 2.8 A
1.2.4 Output minimum current 0 A
1.2.5 stabilized voltage precision ±3%
1.2.6 Ripple & Noise ≤240 mVp-p
1.2.7 ON/OFF overshoot amplitude ±10%
1.2.8 Dynamic Response Overshoot amplitude ±10%
Recovery time △t≤200 µS
1.2.9 Voltage Regulation 3%
1.2.10 Load Regulation 5%
1.2.11 Start Time 200 mS
1.2.12 Hold up Time ≥10 mS
1.3 Protection
Item Project Technical Specifications Unit
1.3.3 Output over voltage 57-64.8 Vdc
1.3.5 Output limiting current 2.8-4.5 A
1.3.6 Output short circuit Power dissipation casing: 85
Isolation &Safety Requirements:

Item

Project

Technical Specifications/

Testing Condition

2.1

Electrical strength

Input &

Output

1500Vac/10mA/1min

Input&earth connection

1500Vac/10mA/1min

Output&earth connection

500Vdc/5mA/1min

2.2

Insulation resistance

Input &

Output

50MΩ@500Vdc

Output&earth connection

50MΩ@500Vdc

Input&earth connection

50MΩ@500Vdc

2.3

Constant damp heat insulation resistance

Input &

Output

50MΩ@500Vdc

Output&earth connection

50MΩ@500Vdc

Input&earth connection

50MΩ@500Vdc

EMI/EMC Requirements:

Item

Project

Technical Specifications/

Testing Condition

3.1

EMI

Conduction disturbance emission

CLASS B

Radiation disturbance emission

CLASSB

3.2

EMS

Electrostatic discharge immunity

Air discharge 8KV, Contact discharge 6KV, Criterion Bsystem

Electric Fast Transient Burst Anti-interferen

LEVEL 3 criterionAsystem

Surge immunity

LEVEL 3 criterionAsystem

Voltage sag, short time interrupt and slowly varying immunity

Select by standard

*PS:Testing criterion is formulated according to the system requirements.

Environmental Requirements:

Item

Project

Technical Specifications

Unit

4.1

Working TEMP.

-10+45

4.2

Storage TEMP.

-20+70

4.3

Working Humidity

20%90% (RH)

4.4

Storage Humidity

10%95% (RH)

4.5

Altitude

≤3000

m

4.6

Cooling mode

Cooling with built-in DC fan








Environmental Test & Reliability Requirements:

Item

Project

Technical Specifications

5.1

High temperature working

+45 8hrs

5.2

Low Temperature working

-10 8hrs

5.3

High temperature storage

+70℃ 24hrs

5.4

Low temperature storage

-20 24hrs

5.5

Vibration test t

2-9HZ 7MM9-200HZ 2g200-500HZ 1.5g 5*10cir

5.6

MTBF

30000h

Mechanical structure:

Item

Project

Technical Specifications

Unit

6.1

Dimension

169*60.7*28.5 ±1

mm

6.2

PCB Dimension

-

mm

6.3

Output connecting terminal

-

6.4

Package

Anti-static bubble bag

Attached PCB Drawings and Tables (Unit:mm,Error:±0.5mm)

J1 Connecting pin function


Turn pin NO

Definition

PIN1

ACL

PIN245

NC

PIN3

ACN

J2 Connecting pin function

Turn pin NO

Definition

PIN123

-V

PIN455

+V






J2 Line drawing

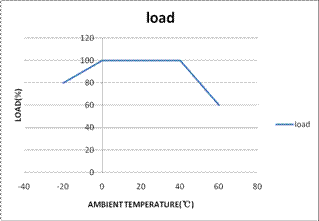

Derating Curve drawing

Product pictures:



Packaging and Transport :

Standard export carton. Each piece is packed by vacuum plastic bag into a inner box then 48pcs to a carton.
